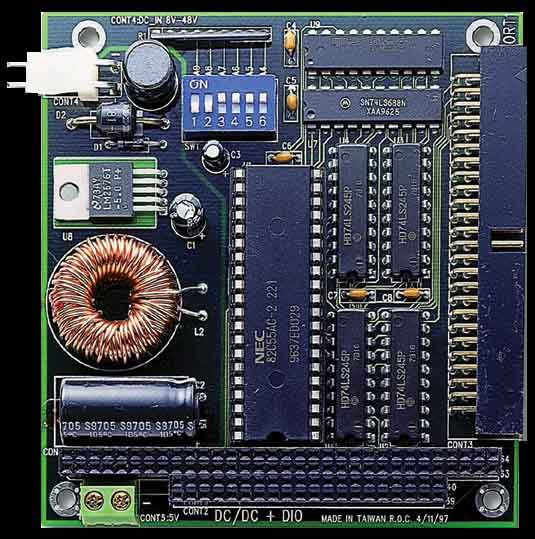

MSI-NC0072 PC/104 DC/DC Power Supply and 24-Bit Digital I/O Card



The MSI-NC0072
DC/DC Power Supply and Digital I/O card provides +5V @ 3A to the PC/104 bus and to an onboard 2-terminal strip for external connections. The input voltage range is +8VDC to +48VDC. Overload and Overheat protection are provided. The unit also provides 24 digital I/O lines via a 50-pin connector that is OPTO-22 compatible. The digital I/O ports emulate a 8255 PPI in mode 0. Operates from -20°C to 60°C.

Pricing

MSI-NC0072 User Manual (Adobe Acrobat Format)
