MSI-P440 PC/104
Thermocouple (Temperature) Input Board

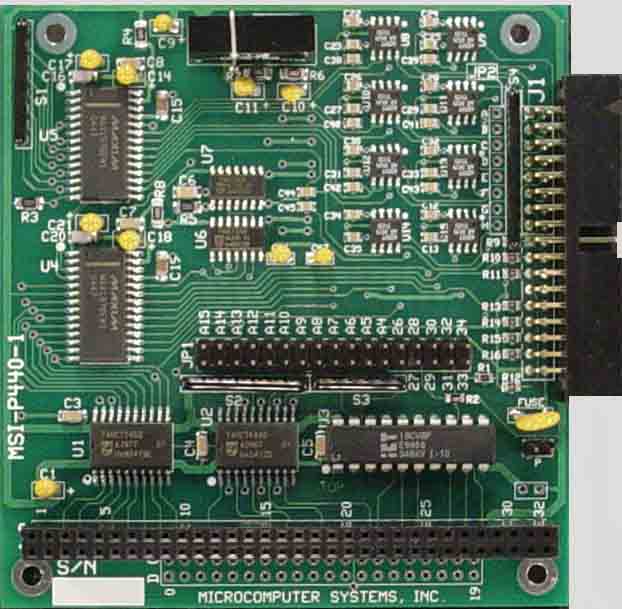

The MSI-P440
is a low cost, high performance 8 channel thermocouple and 8 channel 12-bit analog input board. Analog Devices AD597 (-200 to 1000°C, K type) thermocouple conditioners provide ice point compensation and 10mV/°C proportional operation. Programmable analog inputs for 0-5V, ±5V, 0-10V, and ±10V with 12 us conversion time. Two models are

8 Channels T/C Type K (MSI-P440-K)

8 Channels T/C Type K and 8 Channels Analog In (MSI-P440-K/A)

The unit is an 8-bit stackthrough PC/104 with I/O mapped 16-bit addressing for jumper selectable board addresses and interrupt options. Operates -40°C to 85°C. Requires PC/104 Bus +5V only.
