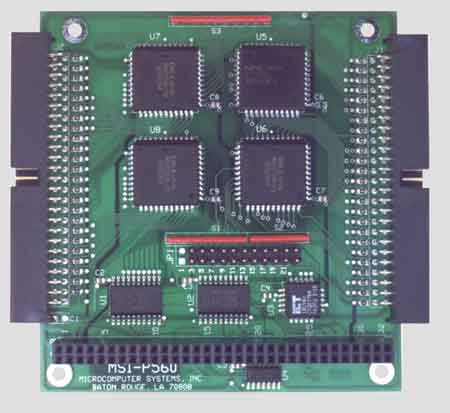

The MSI-P560
provides 96 TTL
level input/output lines arranged in four 24-bit digital
I/O groups. Each group emulates a 8255 PPI (programmable peripheral
interface)
operating in mode 0. Each group is divided into three 8-bit ports ports
A, B and C. Ports A and B can be configured as 8-bit input or
output.
Port C can be configured in two groups of four as input or output. I/O
is provided by two 50-pin connectors. The unit is an 8-bit stackthrough
PC/104 with I/O mapped 16-bit addressing for which addresses A5 thru
A15
are jumper selectable. Requires +5V only.
Pricing
Data
Sheet (Adobe Acrobat Format)
MSI-P560
User
Manual (Adobe Acrobat Format)
