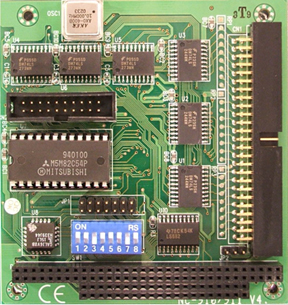

The MSI-NC911
is a general purpose
PC/104 I/O board which provides 24 parallel TTL I/O
lines using a 82C55A-Type PPI (programmable peripheral interface) with
a high sink/source current of 24mA. Digital I/O is via a
50-pin
connector that is Opto-22 compatible. Three
16-bit
counter/timer channels are implemented using a 82C54 interval timer.
A 20-pin connector provides for counter or timer I/O. The
unit is an 8-bit stackthrough PC/104 with I/O mapped 16-bit addressing
for which addresses and interrupt options are jumper selectable.
Requires +5V only.
