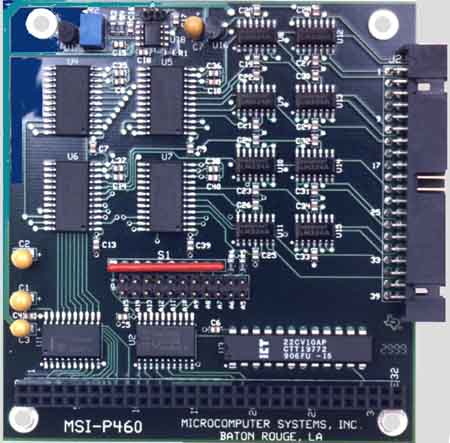

The MSI-P460
is an 8-bit analog output card which provides
either 8, 16, 24 or 32 channels. Output ranges are jumper selectable for
0-5V or 0-10V. A single potentiometer adjustment provides spans of 4 to 6V
or 8 to 10V for the two output ranges. Nonlinearity and relative accuracy
are ±1 LSB with a settling time of 5 us and a slew rate of 2 V/us.
Onboard buffer amplifiers provide output currents of ±10 mA. The unit
is an 8-bit stackthrough PC/104 with I/O mapped 16-bit addressing for which
addresses are jumper selectable. Operates -45°C to 85°C. Requires
+5V and ±12V.
