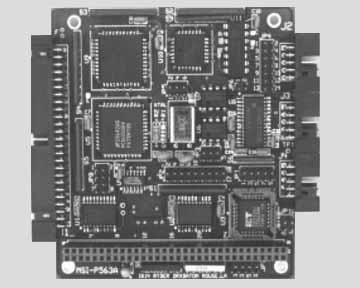

The MSI-P563
is a general purpose
PC/104 I/O card which provides 24 parallel TTL I/O
lines using a 82C55A PPI (programmable peripheral interface) with a
50-pin
connector that is Opto-22 compatible. A serial port selectable as a
RS-232C,
RS-422 or RS-485 is provided by a 16550 PC compatible UART. Three
16-bit
counter/timer channels are implemented using a 82C54 interval timer.
The
unit is an 8-bit stackthrough PC/104 with I/O mapped 16-bit addressing
for which addresses and interrupt options are jumper selectable.
Requires
+5V only.
Pricing
Data
Sheet (Adobe Acrobat Format)
MSI-P563
User
Manual (Adobe Acrobat Format)
